This unit is Variable Cooling from 0.4 hp to 1.2 hp
Free Installation Promo is Compose of the following:
Save php 8500 on installation charges alone (for Metro Cebu Proper only)
what composes of free installation promo
a) free 10 feet copper tubing with insulation
b) free 10 feet field wire
c) free indoor bracket
d) free outdoor bracket if needed
e) free 4 feet drain hose
what is not included
a) painting and finishing of crack walls
b) all electrical materials and installation from the main AC line
c) drain pipe system beyond the free drain hose
6 Months Parts & Labor Warranty only, 15 days warranty on the remote control unit
Full Specifications:
Model

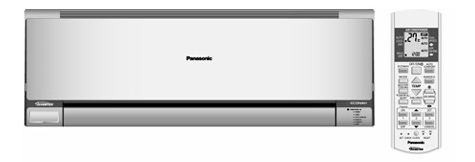

Indoor CS- S9NKA Outdoor CU-S9NKQ
Performance Test Condition JIS
Phase, 60 Hz Single,
Power Supply V 230 230
Min kW 0.84 Mid 2.65 Max 3.20
Cooling Capacity
Min BTU/h 2860 Mid 9040 Max 10900
Min kJ/h 3020 Mid 9540 Max 11520
Running Current A – 3.3
Input Power Min 225 WMid 695 W Max 870 W
EER W/W Min 3.73 Mid 3.81 Max3.68
BTU/hW Min 12.71 Mid 13.01 Max 12.53 EER
kJ/hW Min 13.42 Mid 13.73 Max 13.24
Power Factor % – 92
Indoor Noise (H / L / QLo) dB-A 36 / 26 / 23
Cooling
Outdoor Noise (H / L) dB-A 47
Max Current (A) / Max Input Power (W) 6.0 / 1.08k
Starting Current (A) 3.3
Type Hermetic Motor (Rotary) Hermetic Motor (Rotary)
Motor Type Brushless (6 poles) Brushless (6 poles) Compressor
Output Power W 650
Type Cross-Flow Fan Cross-Flow Fan
Material ASG20K1 ASG20K1
Motor Type Induction (4 poles) Induction (4 poles)
Input Power W 54.5
Output Power W 16
QLo rpm 650
Lo rpm 720
Me rpm 870
Hi rpm 1020
Indoor Fan
Speed
SHi rpm 1130
Type Propeller Fan Propeller Fan
Material PP Resin PP Resin
Motor Type Induction (6 poles) Induction (6 poles)
Input Power W – –
Output Power W 20
Outdoor Fan
Speed Hi rpm 820
Moisture Removal L/h (Pt/h) 1.6 (3.4)
QLo m3/min (ft3/min) 5.5 (194)
Lo m3/min (ft3/min) 6.2 (219)
Me m3/min (ft3/min) 7.9 (279)
Hi m3/min (ft3/min) 9.6 (340)
Indoor Airflow
SHi m3/min (ft3/min) 10.8 (381)
Outdoor
Airflow Hi m3/min (ft3/min) 22.9 (810)
Control Device Capillary Tube Capillary Tube
Refrigerant Oil cm3 FV50S (320) Refrigeration
Cycle
Refrigerant Type g (oz) R410A, 780 (27.5)
Dimension:
Height(I/D / O/D) mm (inch) 290 (11-7/16) 511 (20-1/8)
Width (I/D / O/D) mm (inch) 870 (34-9/32) 650 (25-19/32)
Depth (I/D / O/D) mm (inch) 214 (8-7/16) 230 (9-1/16)
Weight Net (I/D / O/D) kg (lb) 9 (20) 24 (53)
Pipe Diameter (Liquid / Gas) mm (inch) 6.35 (1/4) / 9.52 (3/8)
Standard length m (ft) 7.5 (24.6)
Length range (min – max) m (ft) 3 (9.8) ~ 15 (49.2)
I/D & O/D Height different m (ft) 5.0 (16.4)
Additional Gas Amount g/m (oz/ft) 15 (0.2)
Piping
Length for Additional Gas m (ft) 7.5 (24.6)
Inner Diameter mm 16.7
Drain Hose
Length mm 550
Fin Material Aluminium (Pre coated)
Fin Type Slit Fin Slit Fin
Row x Stage x FPI 2 x 15 x 21
Indoor Heat
Exchanger
Size (W x H x L) mm 610 x 315 x 25.4
Fin Material Aluminium (Blue coated)
Fin Type Slit Fin
Row x Stage x FPI 2 x 23 x 17
Outdoor Heat Exchanger
Size (W x H x L) mm 25.4 x 483.0 x 553.4:573.4
Material Polypropelene Polypropelene
Air Filter
Type One-touch One-touch
Power Supply Indoor Indoor
Power Supply Cord A 10 10
Thermostat – –
Protection Device
Indoor Operating Range
DRY BULB Maximum 32 Minimum 16 WET BULB Maximum 23 Minimum 11
Outdoor Operating Range
DRY BULB Maximum 43 Minimum 16 WET BULB Maximum 26 Minimum 11
